Soft-close hinge

HG-JV65-S

SOFT-CLOSE HINGEHG-JV65-S

2 / 2 total results

Filter items
  • SOFT-CLOSE HINGE
  • For Vertical Use
  • HG-JV65-S

Closing speed of doors is adjustable with a hex key.
Comes with self-close function which can hold doors closed.
Accessories
—Screw Cover
Recommended Screw
For wood:
—Binding head tapping screw M5
—Pan head tapping screw M5

For sheet metal:
—Binding head screw M5
—Pan head screw M5
—Button bolt M5

Case Studies

HG-JV65 The soft-close function and design quality of a high-end machine.

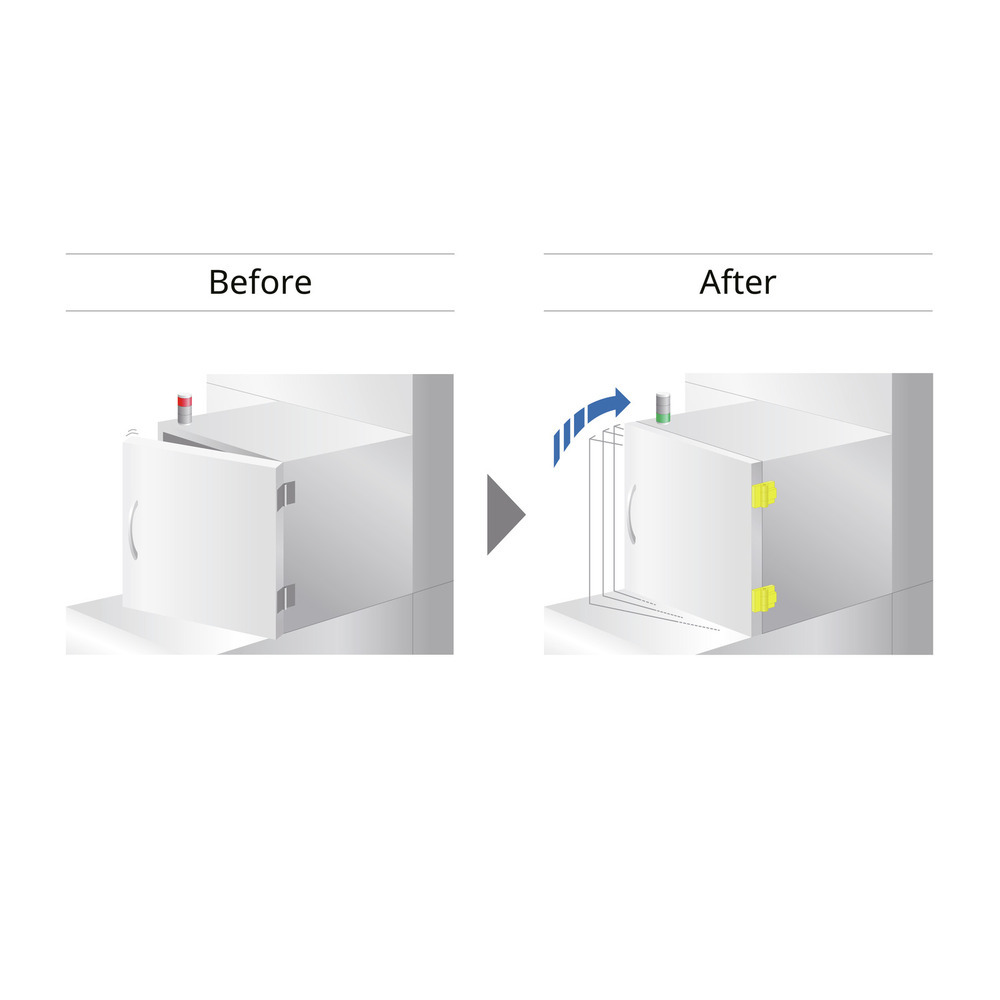

Retraction function improves work efficiency by preventing accidental machinery shut-off.

Videos

Portfolio

Related Information

Drawings / Illustrations

  • Installation
  • Operating Range
  • Closing Speed Adjustment

Spec Table

Body

Image Item Name Item Code Quotation
HG-JV65-S-BL 170-046-272
HG-JV65-S-LGR 170-046-273
Image Item Name Item Code Quotation RoHS Suitable Door Width/2pcs Suitable Door Height/2pcs Door Weight kg/2pcs Hinge Type Colour EAN Box Carton Weight (g)

HG-JV65-S-BL

170-046-272

Max 700

Max 2400

1.0 to 7.0

Vertical Use

Black

4510932189613

10

60

85

HG-JV65-S-LGR

170-046-273

Max 700

Max 2400

1.0 to 7.0

Vertical Use

Light Grey

4510932189620

10

60

85

Slide to See More

CAD download

Body

Item Name
HG-JV65-S-BL
HG-JV65-S-LGR
Item Name 2D 3D Others RoHS Item Code
HG-JV65-S-BL DXF DWG SAT IGES X_T STEP 3DPDF

170-046-272

HG-JV65-S-LGR DXF DWG SAT IGES X_T STEP 3DPDF

170-046-273

Slide to See More

Catalogue (Note: Refer to Spec Table above for most current RoHS info | Catalogue Page Update 2020/08/03)

Catalogue (Note: Refer to Spec Table above for most current RoHS info | Catalogue Page Update 2020/08/03)

Manuals

Installation Manual 1395_1_hg_jv65_s.pdf

Note

—Please use with stoppers to prevent doors from opening over 180°
