The HES Series

Experience the Unseen

When designing a door, it’s normal to focus on obvious visual aspects.
Hinges are often a secondary matter. With this in mind, we realise the value of hinges that won’t interfere with the door design.
The HES was designed to reflect this concept to achieve great door design and functionality.

The “Hidden Power” of HES Concealed Hinges

Conventional Hinges are visible from the outside of the door.

HES Concealed Hinges are hidden inside the door and door frame.

Enhance the Interior Space You Design

The HES series offers superb hinges that are virtually invisible from the outside. It discreetly enhances the beauty of doors without obstructing original designs. As a result, the HES hinges improve the appeal of numerous interior styles.
For example, the HES1F seamlessly integrates into door frames which enhances the overall aesthetic of interior spaces.

Product Advantages

Flawless Integration

HES1F HE2S HES3D

Increased Safety

HES1F HES3D*

Easy Installation

HES1F HE2S HES3D

Trusted Durability

HES1F HE2S HES3D

Optional Items

HES1F HE2S HES3D

*Does not apply to all HES3D products.

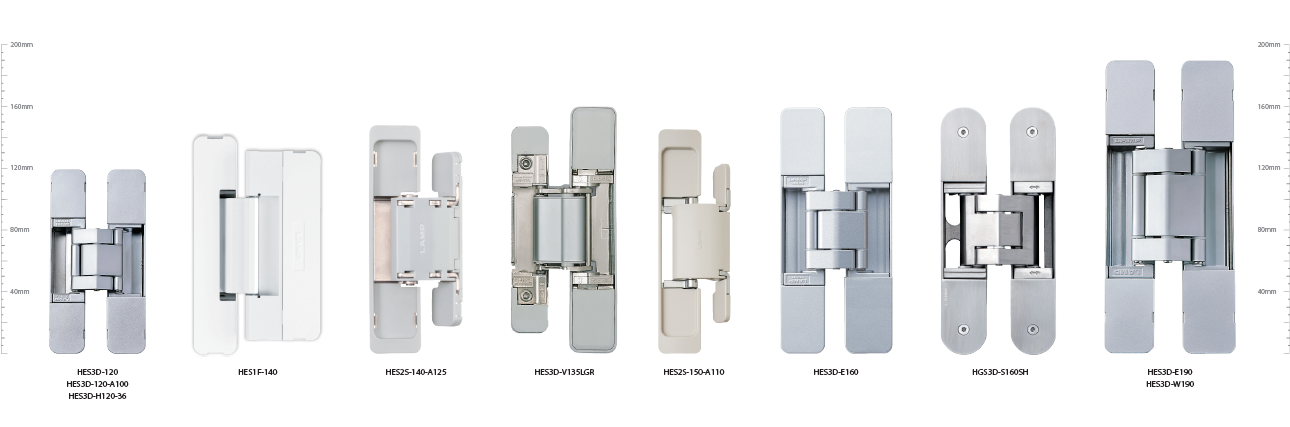

Product Line Up

Load Capacity	3 hinges	40kgf		50kgf		55kgf	65kgf		70kgf	100kfg	125kgf
	2 hinges	30kgf		40kgf			50kgf		55kgf	80kgf	100kgf
Product		HES3D-120 For light-weight doors.	HES3D-120-A100 Opens 100°. Can be used with door restrictors.	HES2S-150-A110 Surface mount for door frame enables easy installation.	HES1F-140 Integrates in 8mm frame	HES3D-V135LGR Unique multi-axis motion.	HES3D-H120-36 The position of the door cutouts will be at the centre (36mm thick).	HES2S-140-A125 Not cutout on the jamb side (surface mount). Opens 125°.	HES3D-E160 For mid-weight doors.	HGS3D-S160SH Made of stainless steel. Great corrosion resistance.	HES3D-E190 Meets fire resistance standards.	HES3D-W190 Has a long arm for a wider throw. For cladded and thick doors. (DC, DN, and BL models only)
Door Size (mm)	Width	≤ 900					≤ 900					≤ 915
	Height	≤ 2400		≤ 2700		≤ 2400	≤ 2700		≤ 2400*	≤ 2400	≤ 2400*	≤ 2400
	Thickness	≥ 29		≥ 35	≥ 36	≥ 30	≥ 34	≥ 38	≥ 36		≥ 38	≥ 42

* For the HES3D-E160 and HES3D-E190, depending on the door conditions, taller doors may be supported. Please refer to the reference tables on each product page for details.

Selection Tools
